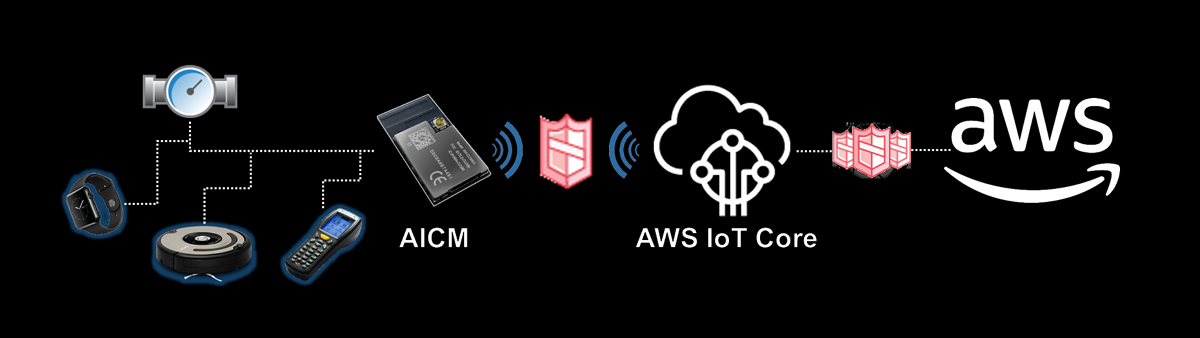

The AzureWave IoT Connectivity Module (AICM) is a Wi-Fi module with FreeRTOS qualified MCU that uses AT commands to securely and efficiently communicate with AWS IoT Core
AW-CU427-P
AW-CU300A V3
Cypress PSoC 62 + CYW43438
NXP MW320
Cortex-M4F 150MHz + Cortex M0+ 100MHz
ARM Cortex-M4F 200MHz
IEEE 802.11 b/g/n
IEEE 802.11 b/g/n
SRAM : 288KB
Flash : 1MB (internal)
SRAM : 512KB
Flash : 4MB (on board)
1T x 1R (PCB antenna)
Dual (PCB antenna + U.FL Connector), 1T x 1R (diversity)
UART
UART
LGA
LGA
36 x 18 x 2.8
28 x 15 x 2.35
FCC, IC
CE, FCC, IC, NCC
-30 ~ 85°C
-30 ~ 85°C
Evaluation Board
AW-CU427-USB
AW-CU300AV3-USB
Type-C USB Dongle
Type-C USB Dongle
75.41 x 20.15 x 10.39
75.31 x 20.15 x 9.98
Transfer UART to USB
Type-C Connector
Easily control from computer (USB or 8-pin header)
Transfer UART to USB
Type-C Connector
Easily control from computer (USB or 8-pin header)

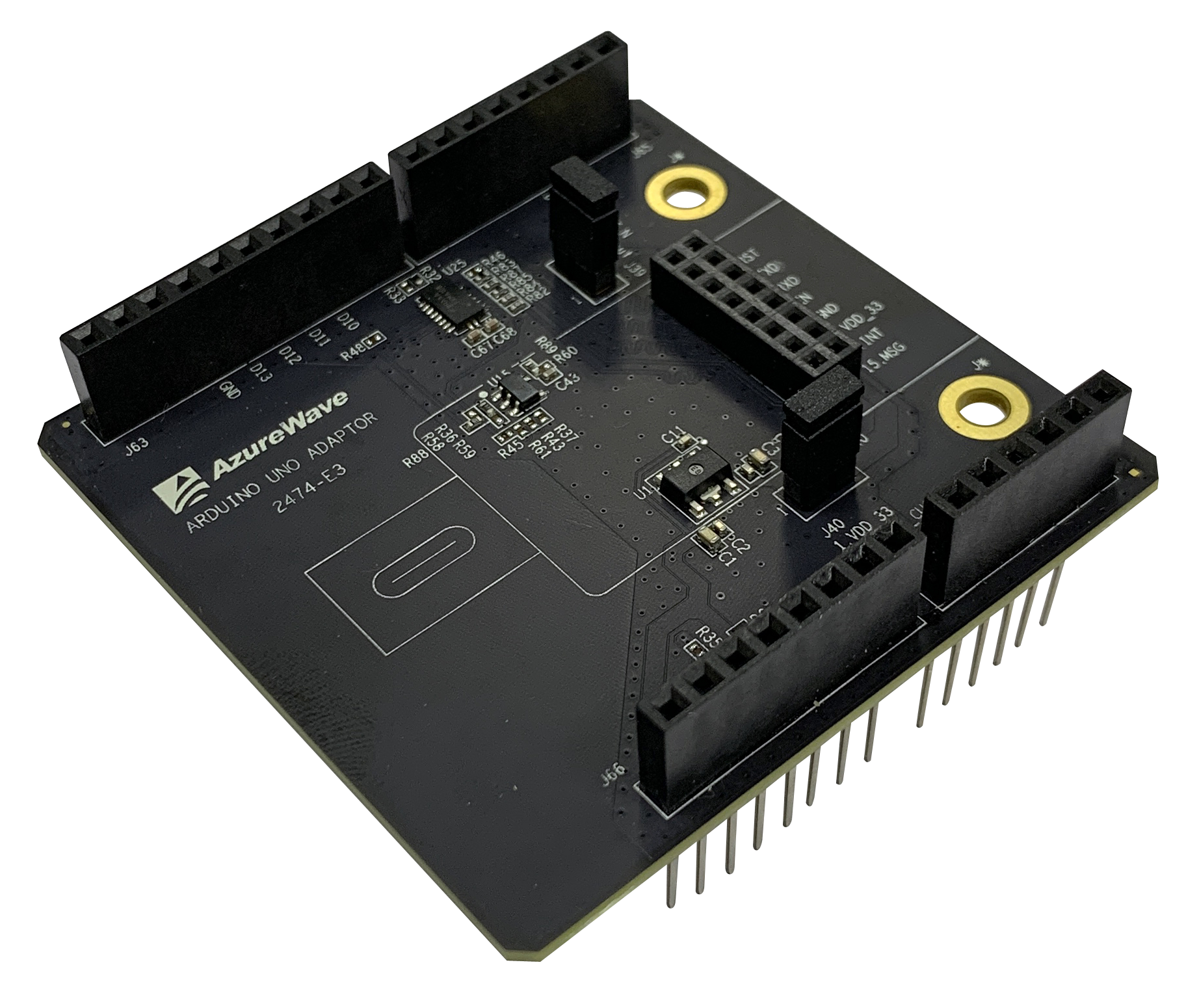

Arduino UNO Adaptor
AW-CU474-UNO
Allow Arduino UNO to control AICC
Please contact Azurewave sales team at sales@azurewave.com for purchase information or to place an order. Our Sales team can also be reached at +886-2-5599-5599.
